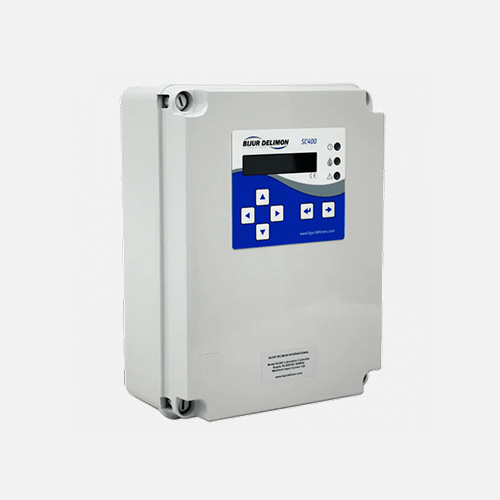

SC400 Controllers – SC400 – CONTROLLER 85-265 VAC IP-56
SERVICE PARTS
DESCRIPTION | PART # |
PCB BOARD SC400 | 37274 |
LCD DISPLAY BOARD SC400 | 37274LCD |
FOOT MOUNTING KIT SC400 | 37275 |
ENCLOSURE SC400 WITH KEYPAD | 37376 |
Features
- Pump output may be powered externally or via control power.
- Valve A, Valve B, and Fill pump may be powered externally or via control power.
- Critical Inputs accept PNP, NPN, or mechanical switches.
- 500 mA of 24 VDC is available to power customer’s accessories.
- Primary alarm inputs may be programmed for N.O. or N.C. functionality.
- Separate Fault and Warning outputs-alarms may be monitored independently of
non-critical events. - 2 zone operation (for Progressive, Injector and Dualine Hydraulic systems)
- IP-56 enclosure, constructed of molded polyester fiberglass.
- CE approved
- Four supported languages (English, French, Spanish, German).
- Machine watchdog and cycle monitoring.
- Pause (stand-by), jog (manual operation).
- Accepts all BDI electric reversing valves and cycle/pressure/“end-of-line” switches.
Application
The SC400 operates in any of five system modes:
+ Series Progressive
+ Single Line injector
+ dualine (Hydraulic Reversing Valve)
+ dualine (Electric Reversing Valve)
+ Continuous
